Short info

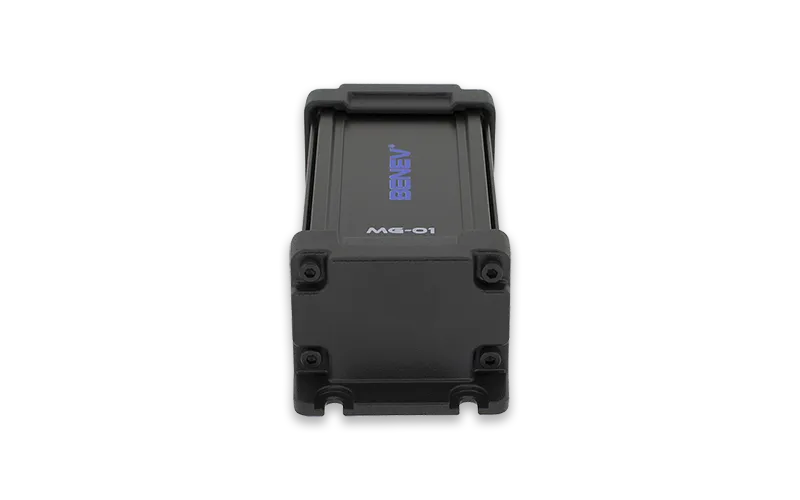

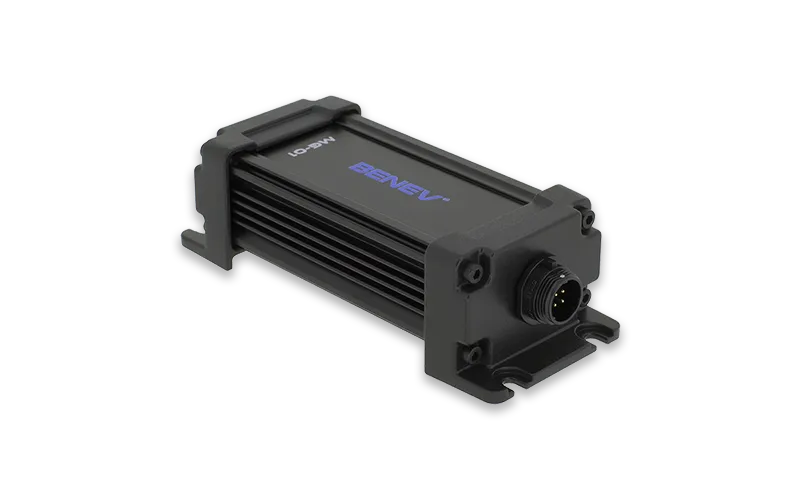

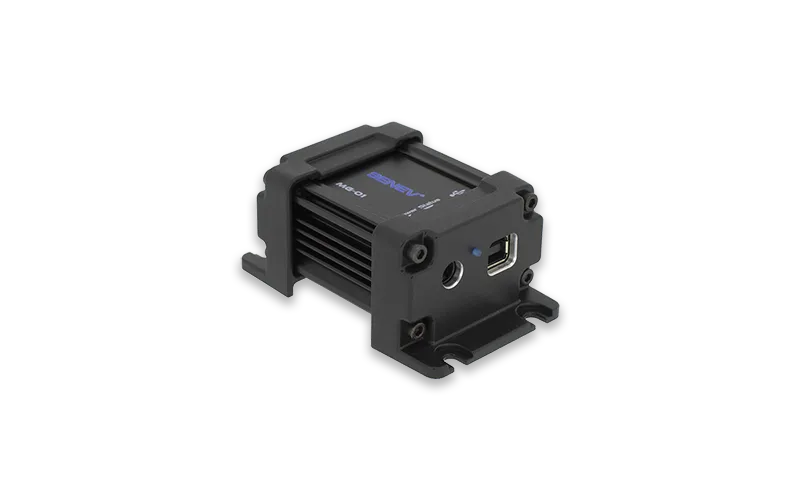

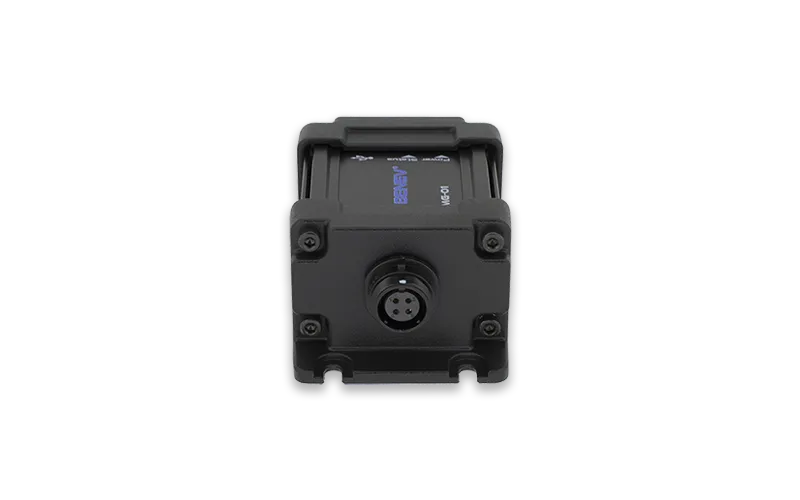

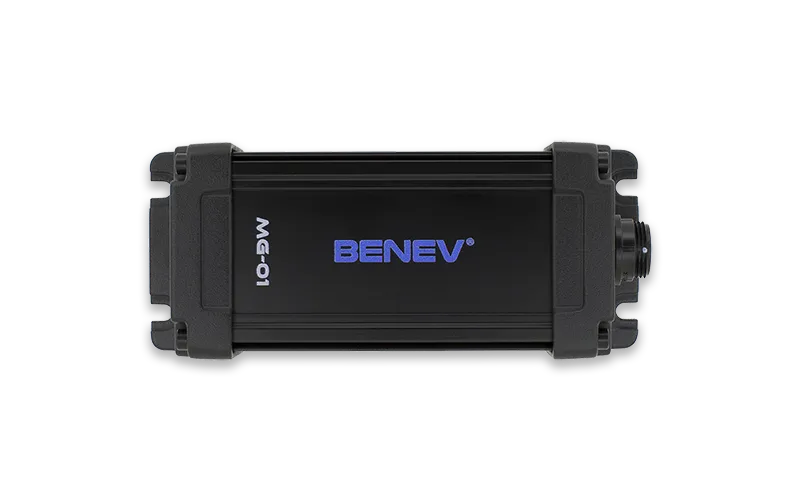

MG-01 is a new 3-axial digital vector magnetometer based on anisotropic magnetoresistive (AMR) sensor technology. With its modern and compact design, reliability and affordable price, it is the world’s first representative of a new generation of scientific instruments. The magnetometer is intended to be used in the geophysical research areas for monitoring and recording the Earth’s magnetic field. The AMR technology allows having low power consumption, low noise, high operation stability, and miniature sizes. These characteristics make MG-01 an exceptionally suitable choice for geomagnetic recording observatories and on-board satellite missions as a worthy competitor of a long-time serving classical fluxgate vector magnetometers.
Basic features
Anisotropic magnetoresistive (AMR) sensors
MG-01 is designed around anisotropic magnetoresistive sensor technology, ensuring high sensitivity and low noise measurements.
Completely digital design
MG-01 is a digital instrument with precise and stable operation. It combines many of the advantages of modern technology.
Precise internal temperature stabilization
A built-in precise algorithm provides automatic temperature stabilization of the sensors and most sensitive electronic components. Accuracy is 0.003 °C at 1 S/s sampling rate.
Isolated digital interface
Digital data lines between Sensor Head (SH) and Interface Module (IM) are galvanically isolated, ensuring electromagnetic noise sustainability.
USB HID implementation
MG-01 is connected to the PC as a USB Human Interface Device (HID). Therefore, no need for additional driver installation.
Windows based GUI software
StudioMG™ is a .NET application with a modern graphical interface and is designed to control the operation of the MG-01 in geomagnetic field monitoring and recording. The software is intuitive and easy to use.
Low power consumption
The compact size and modern digital design of the instrument ensure low power consumption, including the power needed for internal temperature stabilization.
Compact and robust design
The MG-01 hardware is built into compact and robust aluminum shielded enclosures.
On the library page, you can find more articles about our products, projects we participate and scientific research we do.
Go to libraryWhat it is used for?
Earth’s magnetic field monitoring and recording
The systematic study of the Earth's magnetic field is one of the most fundamental priorities of modern physics. The interest in this natural phenomenon is not only because of its indisputable importance for the life of the whole planet and the evolution of biological diversity but also in a purely scientific aspect. The regular monitoring and recording of the geomagnetic activity are of great importance. MG-01 is a scientific instrument specially developed for the needs of geophysics in the study of the geomagnetic field. The magnetometer measures all three components of the magnetic intensity vector and allows their automatic storage for further analysis. The high sensitivity and measurement precision make MG-01 an excellent tool for conducting systematic scientific monitoring and recording the processes in the Earth's magnetosphere.
Sattelite missions and space research
MG-01 is an innovative digital system for geophysical magnetic measurements. Studying Earth's magnetic field requires precise equipment retaining its measuring characteristics for a long, up to several years, even decades. The requirements for onboard space systems are even more rigorous. The harsh conditions in the outer space environment do not allow even the slightest compromise on the quality and performance of scientific equipment. The MG-01 is specially designed to perform measurements in fully automatic mode, maintaining its accuracy for a long period of time. It has a small size, low weight, low power consumption and high stability of operation. Thus, the instrument is very suitable for satellite missions in space. MG-01 is based on anisotropic magnetoresistive (AMR) technology. It can be a worthy competitor to the classic fluxgate magnetometer, which has become a standard in such scientific missions for decades.
Tech info
Technical specifications
| Performance | |
|---|---|
| AMR sensors | Honeywell HMC1001, HMC1002 |
| Orthogonal axes | X, Y, Z |
| Range (on each axis) | ±75000 nT |
| Bandwidth (-3 dB) | DC ÷ 20 Hz |
| Sensitivity @ 1 S/s | 0.015 nT/ADU |
| Noise RMS spectral density @ 1 Hz | 0.05 nT/√Hz |
| SNR @ 1 S/s | 124 dB |
| ADC effective resolution @ 1 S/s | 20.5 bit |
| Absolute accuracy[1] | ~1 nT |
| Max sampling rate | 10 S/s |
| Time ranges | 0.1 s, 0.2 s, 0.5 s, 1 s, 2 s, 5 s, 10 s, 20 s, 30 s, 60 s |
| Internal temperature stabilization accuracy @ 1 S/s (RMS) | 0.003 °C |
| Internal temperature stabilization warm-up time[2] | 10 ÷ 15 min |
| Temperature coefficient | 0.35 nT/°C |
[1] Depends on the calibration procedure.
[2] Depends on the difference between the internal temperature stabilization set point and ambient temperature.
| Electrical | |
|---|---|
| Supply voltage | DC 12 ÷ 24 V |
| Digital data lines voltage | 0 V / 3.3 V |
| Max current consumption | 260 mA |
| Nominal current consumption[1] | 90 ÷ 120 mA |
| Nominal power consumption[1] | ~1 W |
| Max cable length | 100 m |
[1] Depends on the difference between the internal temperature stabilization set point and ambient temperature.
| Mechanical | |
|---|---|

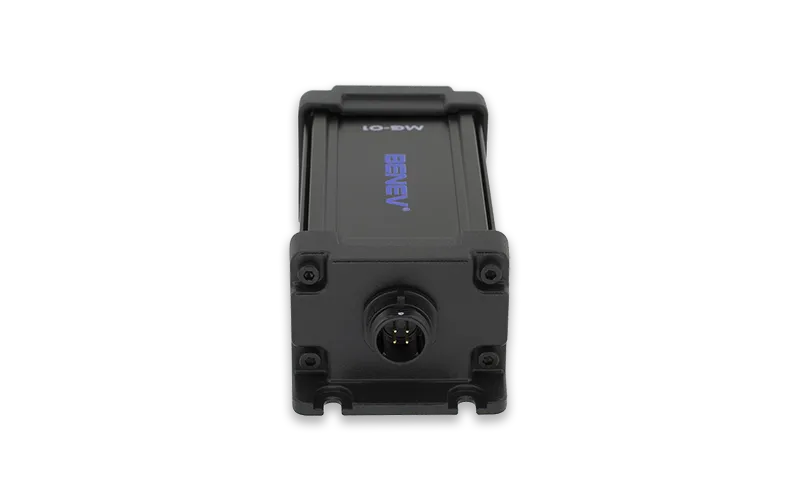

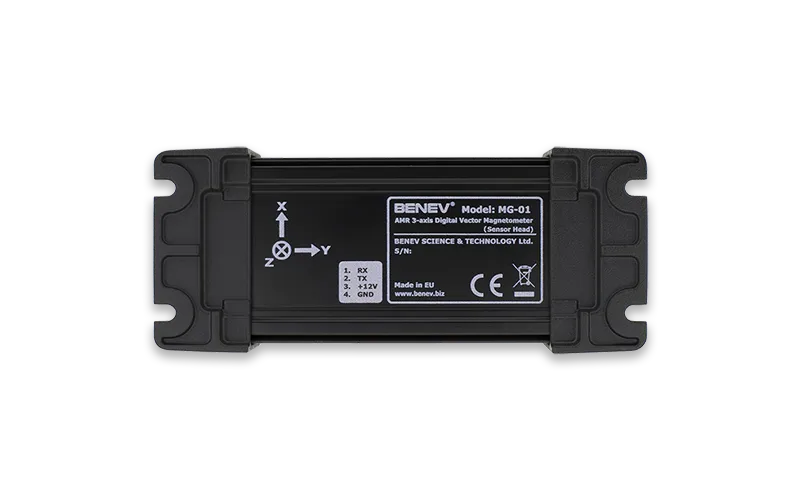

| Enclosure (Sensor head) | Aluminum, IP67, electrically shielded |

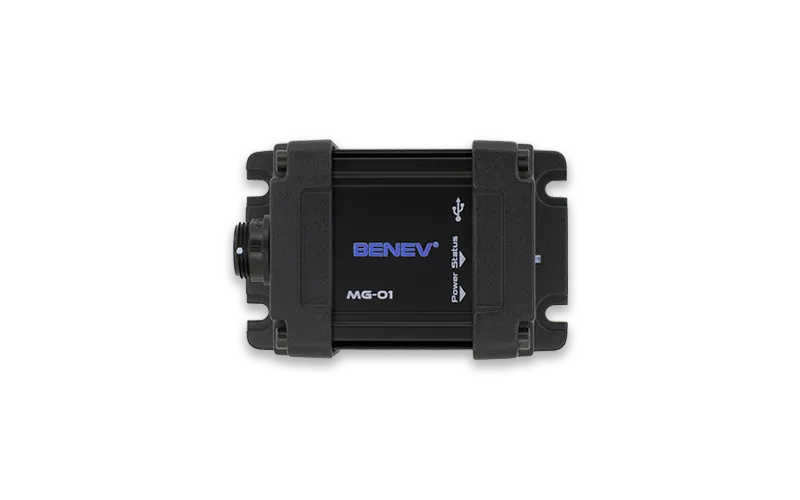

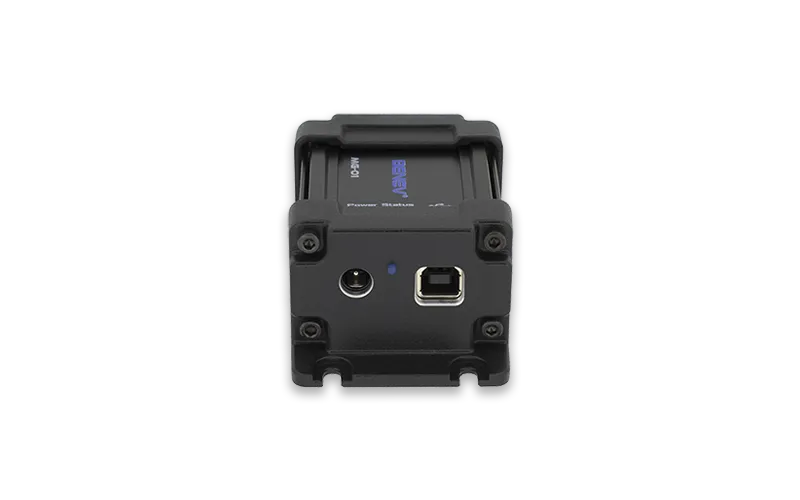

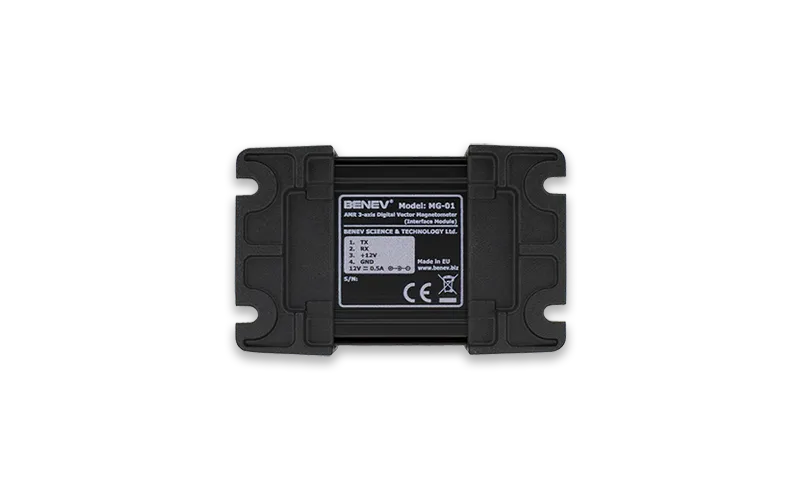

| Enclosure (Interface module) | Aluminum, electrically shielded |
| Connector (Sensor head) | WEiPU, SP1312/P4N |
| Connector (Interface module) | WEiPU, SP1312/S4N |
| Cable connectors | WEiPU, SP1310/P4IN, SP1310/S4IN |
| DC power jack diameter | ф 5.5 / 2.1 mm |
| Dimensions (Sensor head) | 136 x 55 x 40 mm |
| Dimensions (Interface module) | 85 x 55 x 40 mm |
| Weight (Sensor head) | 215 g |
| Weight (Interface module) | 145 g |
| Fixing points (Sensor head) | 4 x M4 (non-magnetic) |
| Fixing points (Interface module) | 4 x M4 |
| Environmental | |
|---|---|
| Operating temperature range | -20 ÷ 50 °C |
| Humidity (relative) | 10 ÷ 80 % (non–condensing) |
System requirements
| Requirements | |
|---|---|
| Operating system | Windows XP*, Vista, 7, 8, 8.1, 10; 32-bit / 64-bit |
| CPU | 1 GHz or better; 32-bit / 64-bit |
| RAM | 1 GB or more |
| Screen resolution | 1024 x 768 or higher |
| Hard disk free space | 10 GB** or more |
| USB | 2.0, 3.0 or 3.1; single port |
| Adobe Acrobat Reader | Version 9.0 or higher |
*Windows XP requires .NET Framework 2.0 or higher to be installed.
**Needed for data storage.

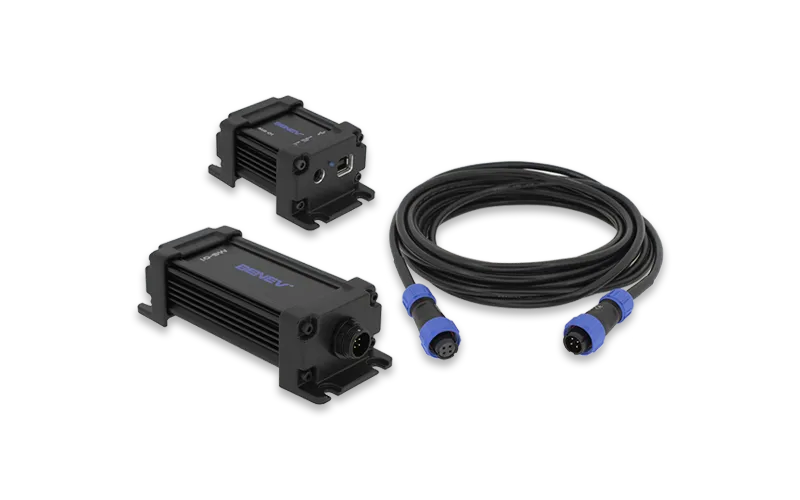

In the set
| Content | |
|---|---|
| MG-01 Sensor Head | 1 pc. |
| MG-01 Interface Module | 1 pc. |
| Shielded cable 10 m | 1 pc. |
| USB cable | 1 pc. |
| +12 V DC power supply adapter | 1 pc. |
Downloads
Here you can download the latest version of the StudioMG software. StudioMG is an application with easy maintenance and virtually does not need a special installation at all. Just unpack the studiomg.zip file somewhere on your system, for example, in the C:\Program Files\StudioMG and put a shortcut to the application’s .exe file on your Desktop or Start menu. That's all. More information about the software installation you can find in the User manual.
NOTE: Do not change the structure and content of the unpacked zip archive.
NOTE: On Windows XP, the Framework .NET 2.0 or later should be installed to get StudioMG working.
NOTE: The StudioMG zip archive contains an executable file. Some antivirus software may restrict it from the download. Please, check the settings of your antivirus program.
